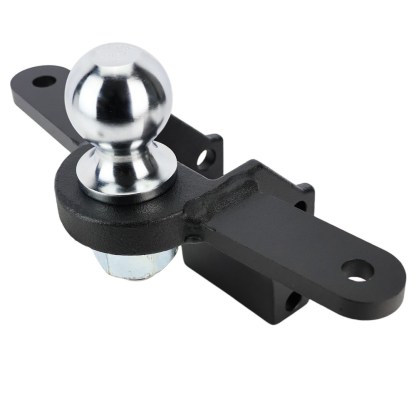

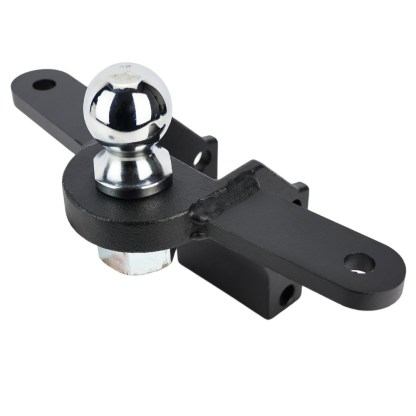

Product Description Fits Shocker Bumper Hitches: Works with Shocker Air, Streamline & HD series bumper hitches & Shocker XR series hitches, & Impact series cushion hitches. Fits 3-3/4″ Shocker Bumper Hitch Channel. 2 Ball Size Choices: Choose with a 2″ or 2-5/16″ chrome ball or no hitch ball (ball shank hole size is 1-1/4″ to bolt on a hitch ball). Raised Mount with Sway Bar Mounts: Raised ball mount design with sway bar mount tabs for friction sway arm & mini ball kits. 2 sway bar mount tabs for mounting mini balls for sway control arm(s) (mini balls not included) (such as the Shocker 1001 friction sway control kit). Rise & Drop Varies by Hitch Used On: See drop & raise guide. Range 2″ to -2″ on air bumper hitches and 5″ rise to 3″ drop for XR & Impact series hitches. 3-5/8″ Mount Width: 3-5/8″ wide OD to fit a 3-3/4″ hitch ID channel with a 3″ on-center hole pattern for 5/8″ pin for Shocker bumper hitches. 3-3/4″ wide fits the Shocker bumper hitch & ball mount channels. Tow Capacity: 20,000 lbs tow & 2,000 lbs tongue weight with 2-5/16″ ball & 10,000 lbs / 1,000 lbs with 2″ ball. Towing capacity is limited by the lowest rated component. Raise & Drop Guide: Air Bumper Hitch Mount Drop & Rise Tow Rating Guide – Raised Ball: 2″ Rise to 2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs. – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above. Impact Cushion Hitch Mount Drop & Rise Rating Guide: – Raised Ball: 5″ Rise to 3″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs. – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above. XR Series 8 Hole Hitch Mount Drop & Rise Rating Guide: (Add 2″ if using 10-Hole Frame) – Raised Ball: 5″ Rise to 3″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs. – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above California Resident: Prop 65 Warning The Shocker Raised Ball Mount with sway bar mount tabs for the friction sway control arm bar kits to give your trailer towing more stabilization and to take care of any sway issues. This raised ball mount is available with a 2″ or 2-5/16″ chrome ball or no hitch ball. The friction sway bars are not included but are sold separately. Built for heavy-duty towing, the 2-5/16″ hitch ball has a towing capacity of 20,000 lbs & 2,000 lb tongue weight, the 2″ hitch ball is 10,000 lbs & 1,000 lbs. The raised mount without a hitch ball features a 1-1/4″ hole for the hitch ball to mount through. Fits Shocker Bumper Hitches: Shocker Air, Streamline & HD series bumper hitches & Shocker XR series hitches, & Impact series cushion hitches. Fits 3-3/4″ Shocker Bumper Hitch Channel. The Rise & Drop range, when used with Shocker Air Hitches, is 2″rise to 2″ of drop. The range, when used with Shocker impact series hitches it has a 5″ rise to 3″ drop & XR series hitch has a 7″ rise to 5″ drop. Made by Shocker Hitch® USA. Note: The sway control tab mount is designed to work with the Shocker Friction Sway control kit or similar, which are not included and available separately. Suggested to get 1 kit if towing under 10,000 lbs and 2 kits if towing over 10,000 lbs. California Resident: Prop 65 Warning
