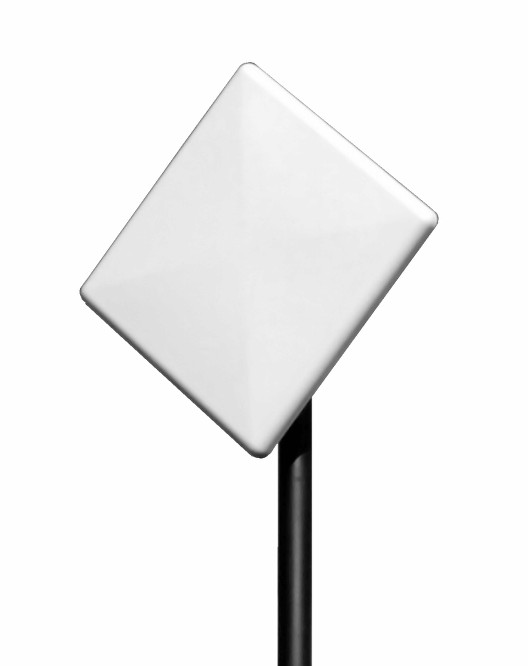

Description2×2 MIMO 5G Directional Antenna Very High Gain – Very Directional2x 19dBi ~ 3300-3800MHzOptus, Telstra & Vodafone (TPG) 5G 3.5GHz (n78) The main purpose for this antenna is to ensure that your modem connects only to the 5G Band of 3.5GHz. Specifically designed for the 3500MHz 5G band required to achieve maximum DL/UL speed.MiMo X-pol specifically for 5G 3300-3800MHz bandsFor the Telstra, Optus and Vodafone 5G n78 band only.Very high gain antenna covering n78Narrow Beam-width allows targeting of one particular tower to find the fastest services in peak periods.Fixed Wireless, Outdoor installs.Not suitable for any 4G or 3G band.SPECIFICATIONS Electrical DataGain:18 ±1 dBiFrequency (MHz)3300-3800 (n78 3500-3700 AU)VSWR:<1.7:1Polarization:V-H or X-Pol, ±45°Horizontal Beamwidth: 150°Vertical Beamwidth:15°Front-Back ratio (FBR):25dBNominal Impedance: 50 OhmsMax Input Power: 100 W Mechanical DataConnector:2x N FemaleDimensions (mm):305 x 305 x 25Weight:1.2kgRadome Material:Weatherproof UV Resistance ABSMounting Method:Bracket allows for Mast MountingMast Diameter:Ø25-Ø53mmRated Wind Velocity:150km/hOperating Temp:-40~ 65°CType:Flat PanelWall and Pole Mountable3.5GHz 3.6GHz n78 CompatibleCarrier/ServiceFrequencyBandBandwidthCompatibleTelstra 5G, Optus 5G Dense Air, #Mobile JV3500MHz (3.5GHz)n783500~3800 MHzWorldwide (not Australia)3600MHz (3.6GHz)n783500~3800 MHzNotes: *Minor or in-transition services #Joint venture between TPG and Vodafone HA ** Transitioning to 5GReferences: https://whirlpool.net.au/wiki/mobile_phone_frequencies https://en.wikipedia.org/wiki/List_of_5G_NR_networks5G NR (New Radio) Frequency Bands5G NR frequency bandshttps://www.rfwireless-world.com/Terminology/5G-NR-Frequency-Bands.htmlBest Coax Cable for 4G LTEConsider using super-low-loss LMR400 coax for 4G LTELMR240 & LMR195 coax are very high quality coax cables. However there are no magical loss-free coax cables and as such are subject to attenuation that increases with increased frequency and longer length as any coax cable. As the upper 4G bands of 1710MHz – 2700MHz the attenuation per metre will be more than double that of the lower 700, 850 and 900MHz bands. Thus we always recommend LMR400 super-low-loss coax for runs more than 5m for frequencies over 1GHz in low signal areas.
