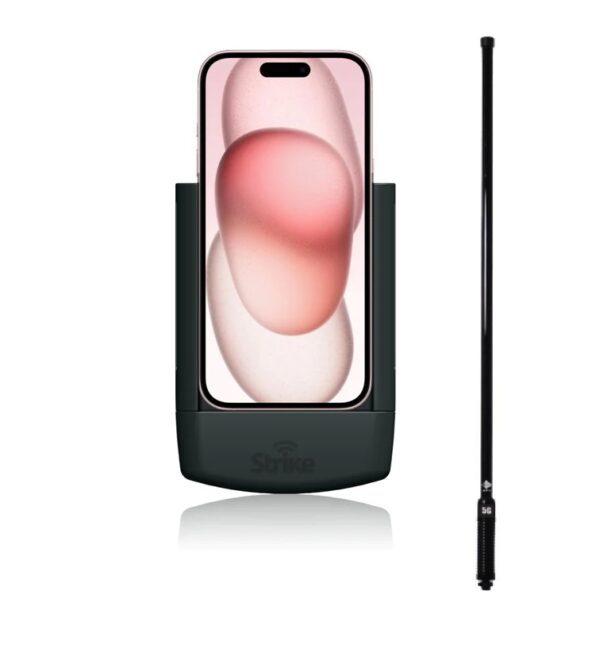

iPhone 15 car kit cradle RFI CD8195 high gain antenna iPhone 15 car kit

The new CD8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960MHz, 1710-2170MHz, and 2300-2700MHz) but now the new 5G LTE band (3400-3800MHz). It is ideal for use with cellular modems & active repeaters, especially when signal is poor. The outstanding performance of the CD8100 series lies in the use of the patented Meander™ radiating elements. These Meander™ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit. The CD8100 Series includes an integrated spring with threaded stud/nut for easy installation on vehicles. KEY FEATURES: – Patented PCB based collinear design offering the ultimate in pattern and gain stability. – Ideal for new 5G/LTE networks with true multi-band coverage. – High gain across all bands making it suiting fringe and rural applications. Frequency Range 1710-2170, 2300 – 2700, 3400 – 3800, 698 – 960 5m RG58 low loss cable (9006) terminated with SMA male connector Antenna Length  920mm
