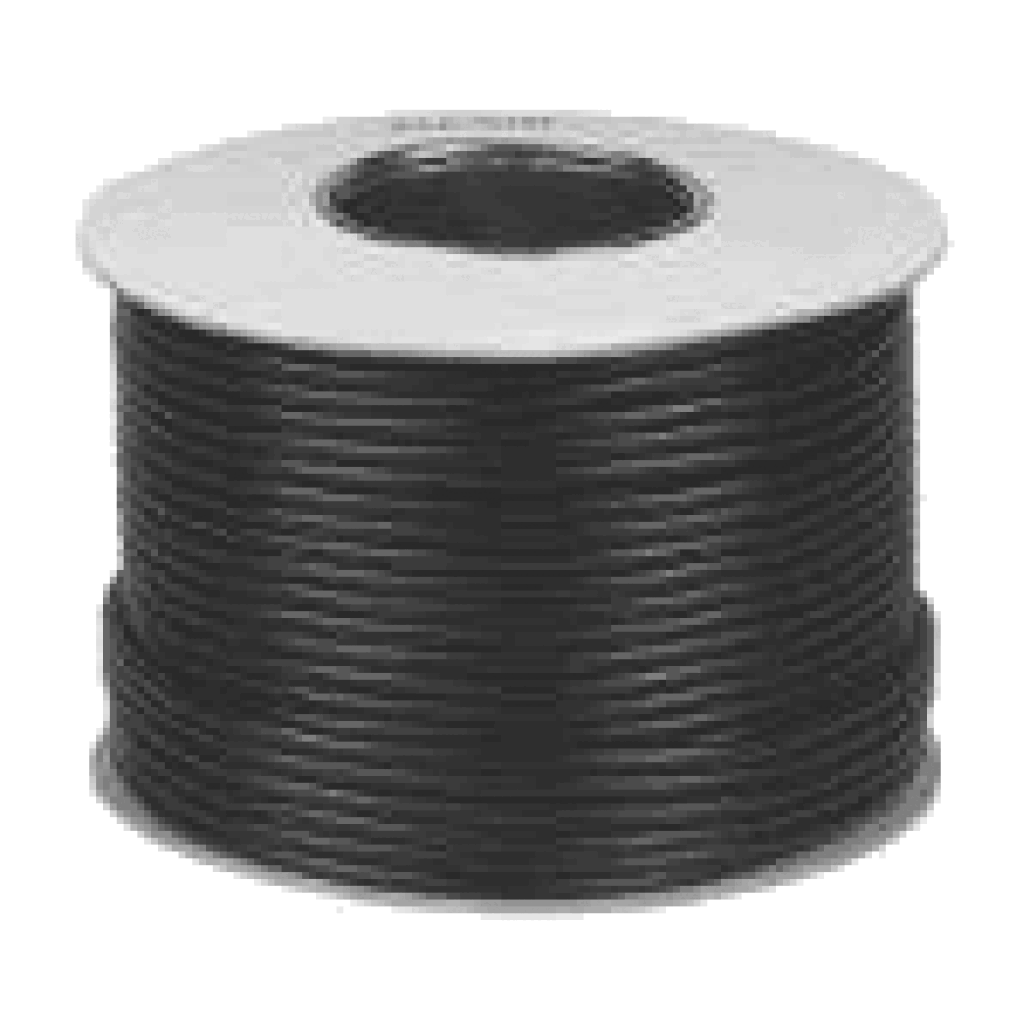

DescriptionLL240 Antenna Coax Cable (CLF240, KRL240,®LMR240) – 50Ω Very Low Loss Double Shielded 6.1mmSuitable for Mobile and Fixed-Wireless installations such as Vehicles, Caravanns, Offices Buildings and Homes. Lower loss than the LL195 (®LMR195).LL240 Coax has two SMA female connectors. Note, the 5m version is SMA male to SMA female. When ordered with our antenna kits, we ensure that the whole thing fits together and will include gender-bender where required. Semi-rigid and Double shielded by one layer of Aluminium foil and one close-knit copper braid make for a low-loss coax with 6.1mm overall diameter. Its very-low signal attenuation figures make it well suited for use at Cell Phone frequencies.LMR240 – Signal Loss – 10m cable lengthFrequency (MHz):850900180021002400 (WiFi)Attenuation (dB):2.42.53.63.84.1Outer Diameter:6.1mm Impedance: 50ΩInner Conductor:1.42mm Solid CopperOuter Sheild:Bonded Aluminum Foil Tinned Copper BraidDielectric:Physical Foam Polyethylene There are many suppliers that manufacture coax cables to the ®LMR series specification. Some suppliers cut corners, producing sub-standard coax which does not conform.Our High Quality Coax Fully Tinned Copper Outer Braid – Resist corrosion and electrolysis – Strong mechanical connection – Lower loss over long lengthsGreater than 90% Braid Coverage – Lower signal lossBonded Foil Second Shield – Consistent ImpedanceCorrect Inner & Outer Conductor Diameter – Correct impedance.Foam Polyethylene/Air DielectricCheap Poor Quality Coax Bare Copper Outer Braid – No Corrosion resistance – Weak mechanical connectionLess than 75% Braid Coverage – Signal loss by radiationLoose Foil Second Shield – Inconsistent ImpedanceUndersized Inner & Outer Conductor Diameter – Loose fit to crimp connectors – Poor impedance matchSolid Polyethylene Dielectric – Higher signal loss ®LMR is a registered trademark of Times Mircowave Systems USA
