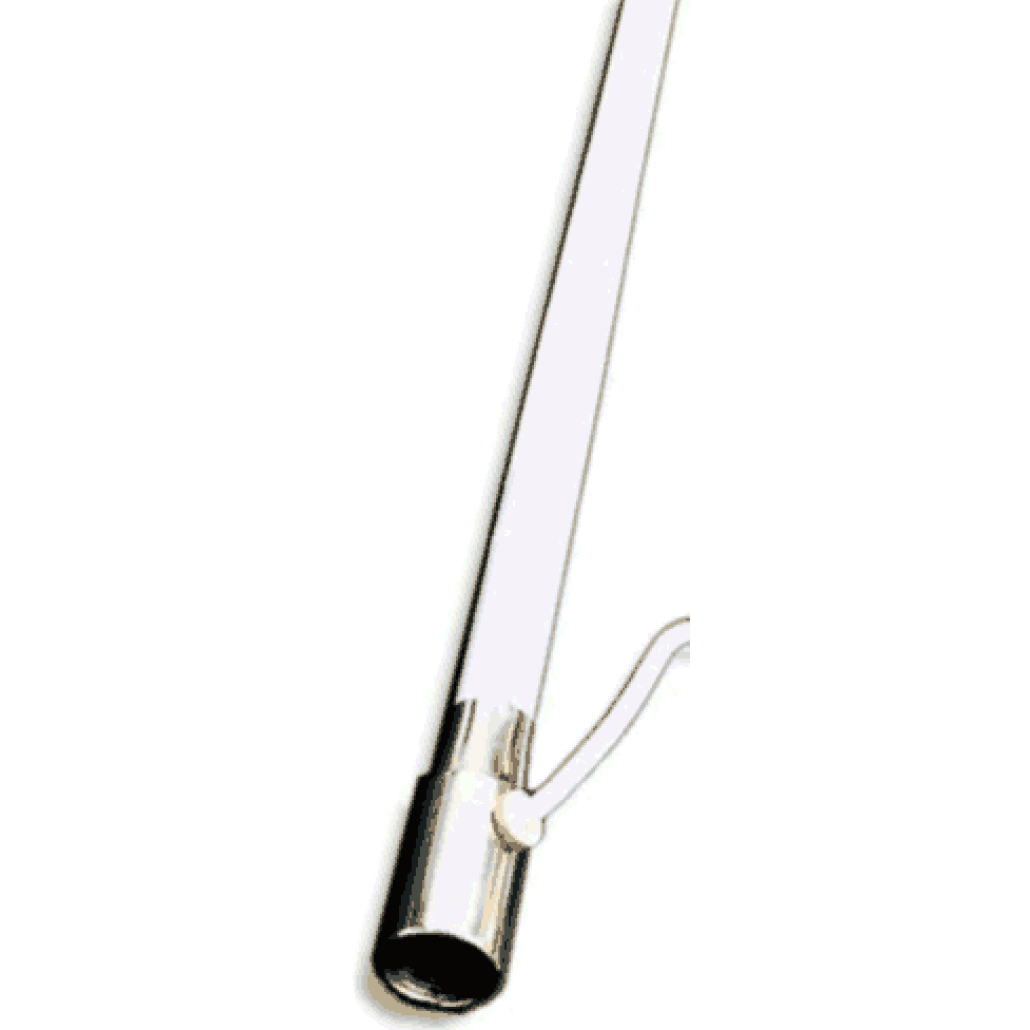

DescriptionAll Band – Marine Antenna – Solid Base3dBi for nextG/3G/4G 850MHz and 900Mhz 3dBi for GSM/3G 1800-1900-2100MHz & 3dBi for 4G LTE-1800Multi-Band Cellular whip – Fibreglass – Black or WhiteGround Plane Independent allowing mounting anywhere on the vehicle with no effect on performanceIdeal gain for improving vehicle based mobile phone reception.Stainless Steel Spring Base1/2 inch mounting screw.Please select a mounting bracket to suitConnectivity ApplicationUSB 3G Dongles (modem) and Router Gateways.GSM/3G/4G/LTE Mobile Phones using a Patch Cable or CradleAll GSM, 3G, nextG, 4G LTE 1800 & 2100 services.Supplied with FME female fitting. Patch Cable NOT included.For Outdoor, Vehicle and Mobile installs.Heavy Duty multi-band 3dbi antenna for use when coverage is essential. Designed to provide maximum connectivity when in rougher seas. It’s lower gain provides a wiser beamwidth making it less susseptible to dropouts in rough weather. The trade-off of this lower gain is that the distance in calm weather is reduced compared to the heigher gain antennas. Electrical DataGain – 850 & 900MHz Bands3dBiGain – 1800/1900/2100 MHz3dBiFrequency Range:824-960/1710-2170 MHzVSWR:<1.8:1Polarization:VerticalBeamwidth:Nominal Impedance:50 OhmsMax Input Power:20 WCable:5m low loss LL195Mechanical DataConnector:FME femaleLength – Spring Base:1800mmBase1in Stainless SteelAntenna Material:Fibreglass RadomeMounting Method:Operating temperature:-45~ 75°CType:Marine Omnidirectional RigidFME Connection Connects Antenna to Modem and Mobile Phone Patch Cables Patch Cable NOT included. Please select the patch cable you require 850 900 1800 1900 2100 MHz CompatibleCarrier/ServiceBandModeBandwidthCompatible?Telstra/Optus 4G LTE 700700MHz4G LTE FD703~803 MHznoTelstra/Bigpond nextG 850MHz3G WCDMA824~894 MHzVodafone 3G, 3G HSPA DC-HSPA Optus, Virgin, Vodafone 3G (900MHz)900MHzUMTS/HSPA 900880~960 MHzTelstra – 4G LTE – Advanced900MHz4G LTE-A880~960 MHz900 & 1800MHz4G LTE-A Dual Band880~960 MHz 1710~1880 MHzTelstra Vodafone & Optus – 4G LTE1800MHzLTE 1800 FD1710~1880 MHzTelstra voice/sms1900MHzUMTS 19001850~1990 MHzVodafone, Optus, Telstra GSM/3G – voice/sms/data2100MHzUMTS/HSPA1920~2170 MHz*Services are being continuously updated – subject to change.
