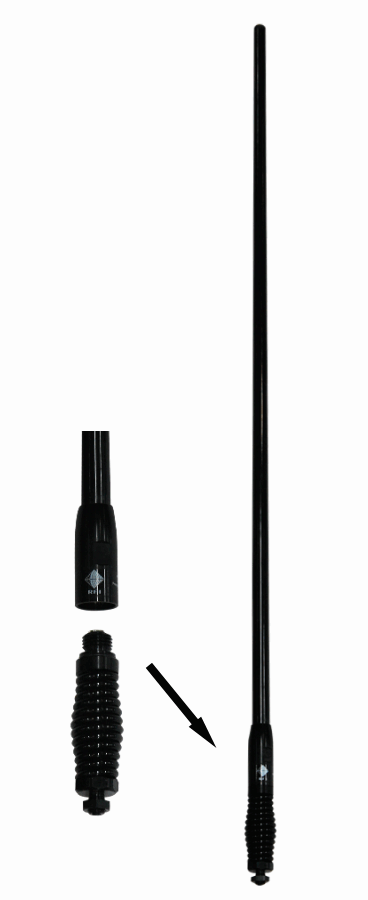

8.5dBi 4G/3G Detachable Omnidirectional Mobile Phone Vehicle Antenna RFI CDQ7199

Description 4G/3G Vehicle Antenna – Spring Base, Detachable Covers 4G/4Gx/3G 700MHz (B28), 850MHz (B5), 900MHz (B8) mobile network services as well as the upper 4G bands of 1800MHz (B3), 2100MHz (B1), 2300MHz (B40) and 2600MHz (B7) as used by Telstra, Optus and Vodafone. Also covers the 2.4GHz Wireless Network band.With a 16mm stud mount on an heavy duty electropolished stainless steel spring, these antennas may be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, 4WD’s, Motor-homes and trucks. Also suitable for marine applications.The CDQ7199 Mobile Phone antenna is designed with the patented coupled Meander™ radiating elements which deliver consistency of gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit.In addition the CDQ7199 is designed with the RFI Q-Fit® system for quick removal of the whip section. This allows users to remove the whip section when entering car wash’s, low height areas such as car parks and for security. The antennas are provided with a waterproof sealing cap to prevent the ingress of dust and water when the whip section is removed.Bandwidth: 698-960MHz / 1710-2170 / 2300-2700MHzQ-Fit® system for quick removal of the whip sectionNominal Gain : 8.5dBi @ 698 – 960MHz  – Bands: 28 (700), 5 (850) & 8 (900) 4.5dBi @ 1710 – 2170MHz – Bands: 3 (1800), 1 (2100) 5.5dBi @ 2300 – 2700MHz – Bands: 40 (2300), WiFi (2400) & 7 (2600)Vertical Beamwidth: 20° / 20° / 20°VSWR: <2.3:1Power (max capable): 10WCable and Connector: 5m of 9006 foil shielded, low loss coax cable (equivient to LMR195/200)Termination: FME female, suits all Phone cradles and Patch LeadsRadome Diameter: 22.5mm – 15.6mm TaperedLength: 2080mmPackaging: Clear hanging bagModem/Phone Patch Lead is NOT included.Illustration only, actual product appearance may vary slightly.698-960/1710-2700MHz CompatibleCarrier/ServiceFrequencyBandBandwidthCompatibleTelstra 4Gx Optus 4G, *TPG 4G700MHzBand 28703~803 MHzTelstra 3G Vodafone 3G & 4G 850MHz Band 5809~894 MHzOptus 3G,  *Telstra 4G Vodafone 3G *4G900MHzBand 8880~960 MHzTelstra & Optus 4G1800MHzBand 31710~1880 MHzVodafone, Optus, Telstra 3G and *4G2100MHzBand 11920~2170 MHzOptus 4G TDD (Vividwireless)2300MHzBand 402302~2400 MHz2.4GHz Wireless Networks WiFi WLAN 802.112400MHzWiFi 2.4GHz2400-2484 MHzTelstra 4G, Optus 4G *Vodafone/TPG 4G2600MHz Band 72500~2690 MHzNotes: *Minor or in-transition services
