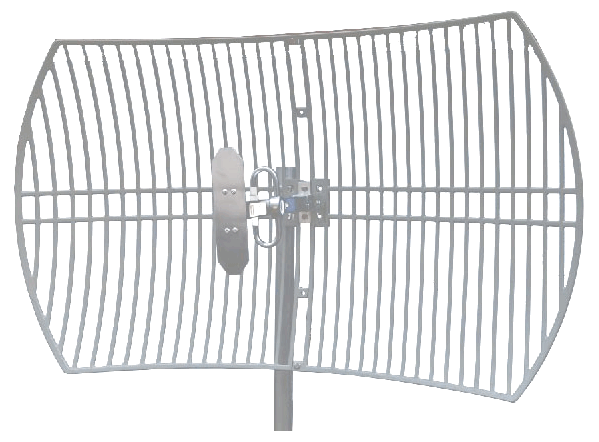

Description15dBi 4G 4GX 3G 700/850/900MHz Parabolic Grid AntennaCODE: PAR-79-15 Price: AU $199.00In StockCoax cable from antenna to wallplate or direct to modem/patch cableCoax (?)None 0.5m LL195 ( AU $17.90)1m LL195 ( AU $19.50)2m LL195 ( AU $21.00)3m LL195 ( AU $22.00)5m LL195 ( AU $25.00)3m LL240 ( AU $24.00)5m LL240 ( AU $27.00)7m LL240 ( AU $29.00)10m LL240 ( AU $33.00)5m LL400 ( AU $42.00)7m LL400 ( AU $50.00)10m LL400 ( AU $63.00)15m LL400 ( AU $84.00)20m LL400 ( AU $105.00)Quantity: 15dbi – Parabolic Grid Antenna for Mobile Broadband 4G/4GX 700MHz 3G/4G 850MHz Vodafone 3G 850MHz Telstra & Vodafone 3G 900MHz Optus & Vodafone 4G 900MHz ACT band 900MHz RFIDConnectivityBenefits – Who uses these antennas.Optus 4G 700MHz and 3G 900MHzTelstra 4GX 700MHz and 3G 850MHzVodafone 4G 850MHz and 3G 850/900MHzFor Fixed Wireless, Outdoor installs.Install 2x antennas at ±45° to create a 4G MiMo antenna systemBest antenna for Cel-Fi Pro and Cel-Fi Go.Homes, Offices, Mines, Dongas and Geo-technical contractors, but rural and metropolitan.Farms and Stations too far from Mobile phone towers.Correctly installed, this antenna may turn an unreliable 3G or 4G internet connection into a fast broadband and quality VoIP service.Single antenna – two antennas are required for MiMo modeUniversal Mounting Bracket for Vertical, Horizontal and Slant Polarization Supplied as single antenna, with mounting bracket, pole not included.To connect in the faster MiMo mode, two antennas are required, mounted at /-45deg from vertical.Mimo ExampleAntenna Pigtail has SMA male Connection. Patch Leads (if required) not included sold separatelyCables & Connections The antennas have SMA male connector. The optional additional coax cable is can supplied with adapter(s) LL240 and LL400 – SMA female both ends **** Please select ABOVE LL240 and LL400 SMA female on coax, SMA male FME female adapters included with Antenna purchaseLL195 FME female on cable, SMA male adapter included with Antenna purchase Antenna Coax Cable • Select your required length of LL195, LL240 or LL400 low-loss coax cable ABOVE • Connects Antenna to Wallplate or direct to your modem/Patch Cable. Coax specs SMA-Male and FME-female Final Termination *When antenna is purchased with an Optional Coax • Selected Coax Cables are supplied with adapters to provide final terminations of both SMA Male and FME female via included adapter(s).Others available Coax Cable includes a strip of Self Amalgamating Tape to seal the outdoor antenna connection.Seal antenna connections against Rain, Moisture and UV sunlight.19 wide x 0.8mm thick.Sufficient tape to cover the outdoor SMA antenna connections in the kit.Phone/Modem Patch Cable not included – Please purchase separatelyMast shown in pictures is for illustration purposes only. Mast or pole not includedSpecifications Electrical Data700MHz Band850MHz Band900MHz BandFrequency(MHz):698-803824-890880-960Gain:15dBi15dBi14dBiVSWR:<1.5:1 <1.8:1<2.5:1Polarization:Vertical, Horizontal, ±45° SlantHorizontal Beamwidth:17°Vertical Beamwidth:13°Nominal Impedance:50 OhmsF/B Ratio:>26 dBLightning Protection:DC Ground Mechanical DataConnector:SMA-maleDimensions:990 x 600 x 480 mmWeight:3.5kgPigtail Cable Length:300mmReflector Material:Aluminium AlloyAntenna Material:ABS & Aluminum AlloyMounting Method:MastMast Diameter:Ø40-Ø70mm U-Bolt ClampRated Wind Velocity:210km/hOperating temperature:-40~ 65°CType:Directional Parabolic Grid
