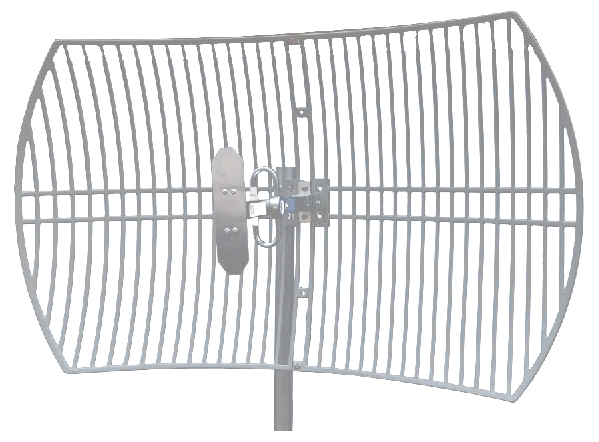

Description15dbi – Parabolic Grid Antenna for Mobile Broadband 4G/4GX 700MHz (Band 28) Optus & Telstra Connectivity Benefits – Who uses these antennas.Optus 4G 700MHzTelstra 4GX 700MHzFor Fixed Wireless, Outdoor installs.Install 2x antennas at ±45° to create a 4G MiMo antenna systemBest antenna for Cel-Fi Pro and Cel-Fi Go.Homes, Offices, Mines, Dongas and Geo-technical contractors, but rural and metropolitan.Farms and Stations too far from Mobile phone towers.Correctly installed, this antenna may turn an unreliable 3G or 4G internet connection into a fast broadband and quality VoIP service.Single antenna – two antennas are required for MiMo modeUniversal Mounting Bracket for Vertical, Horizontal and Slant Polarization Supplied as single antenna, with mounting bracket, pole not included.To connect in the faster MiMo mode, two antennas are required, mounted at /-45deg from vertical.Mimo Example – 2x antennas needed for mimoAntenna Pigtail has SMA-male Connection. Patch Leads (if required) not included sold sepatatelySpecificationsElectrical Data 700MHz – Band 28Frequency(MHz):698-803Gain:15dBiVSWR:<1.5:1Polarization:Vertical, Horizontal, 45° SlantHorizontal Beamwidth:17°Vertical Beamwidth:13°Nominal Impedance:50 OhmsF/B Ratio:>26 dBLightning Protection:DC GroundMechanical DataConnector:SMA-maleDimensions:990 x 600 x 480 mmWeight:3.5kgPigtail Cable Length:300mmReflector Material:Aluminium AlloyAntenna Material:ABS & Aluminum AlloyMounting Method:MastMast Diameter:Ø40-Ø70mm U-Bolt ClampRated Wind Velocity:210km/hOperating temperature:-40~ 65°CType:Directional Parabolic Grid
