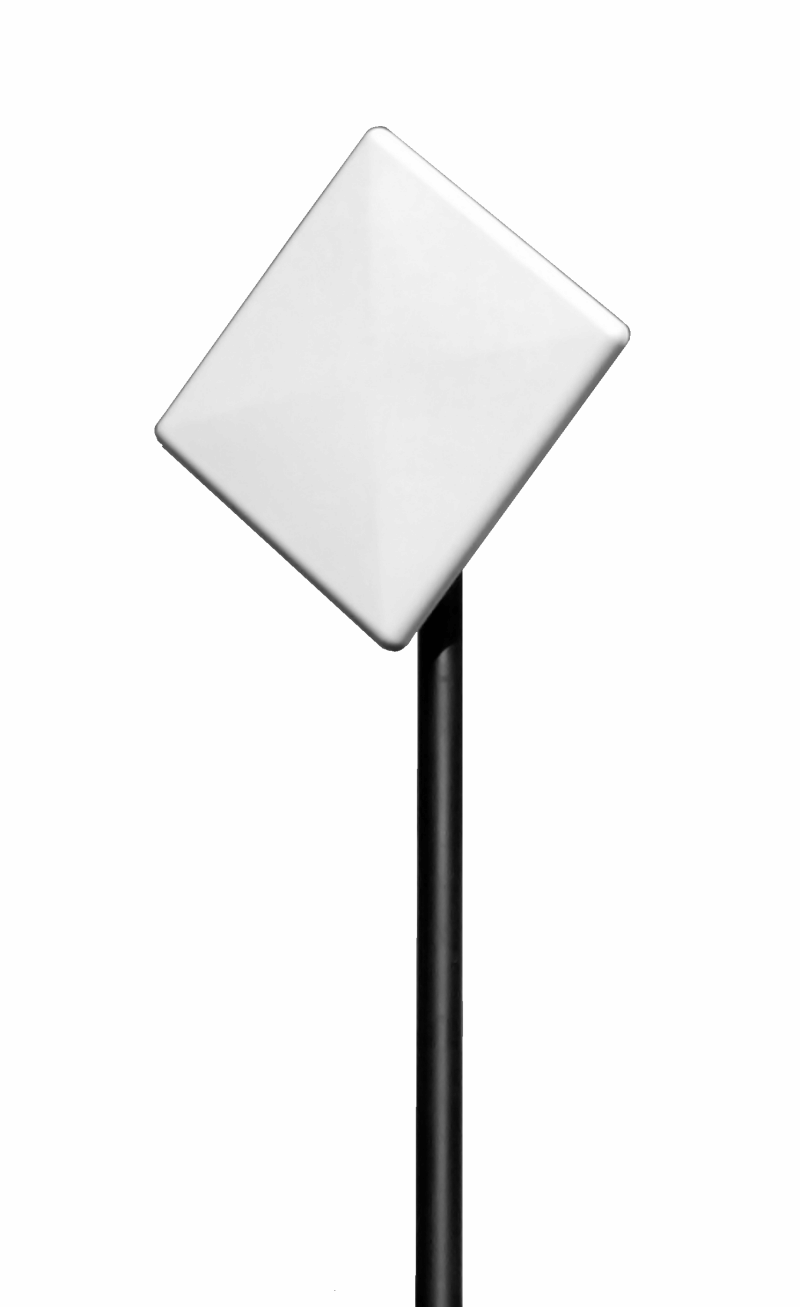

DescriptionMIMO 4G Directional Antenna Very High Gain – Very Directional17dBi ~ 2300-2700MHzOptus Vividwireless 4G 2300MHz (B40) Telstra & Optus 4G LTE 2600MHz (B7)Also can be used forWiFi Wireless N networks: 2400MHz The main purpose for this antenna is to ensure that your modem connects only to the 4G Bands of 2300MHz and above. Specifically for the 2300MHz 4G band required to achieve maximum DL/UL speed on the Optus Vividwireless and Home Wireless Broadband SIM plans.MiMo X-pol specifically for 4G 2300/2700MHz bansFor the Optus / Vividwireless and Home Wireless Broadband SIM plans.Very high gain antenna covering B40, B7 and Wireless N 2.4GHzNarrow Beam-width allows targeting of one particular tower to find the fastest services in peak periods.Fixed Wireless, Outdoor installs.Not suitable for any other 4G band.Supplied with FME-Female and SMA-Male (adapter) final connection. Patch Leads (if required) not included sold separatelySPECIFICATIONS Electrical DataGain:17 dBiFrequency (MHz)2300-2700VSWR:<2.0:1Polarization:X-Pol, ±45°Horizontal Beamwidth: 20°Vertical Beamwidth:18°Nominal Impedance: 50 OhmsMax Input Power: 100 W Mechanical DataConnector:2x SMA Female (as shown in pictures above)Dimensions (mm):300 x 300 x 25Weight:1.4kgRadome Material:Weatherproof UV Resistance PVCMounting Method:Bracket allows for Mast MountingMast Diameter:Ø30-Ø50mmRated Wind Velocity:210km/hOperating Temp:-40~ 65°CType:Flat PanelWall and Pole Mountable Cables & Connections – Panel SMA female The antennas have SMA female connector.The optional additional coax cable is supplied with adapter(s) LL240 and LL400 LL240 and LL400 SMA female on coax, SMA male FME female adapters includedLL195 FME female on cable, SMA male adapter included Antenna Coax Cable • Select your required length of LL195, LL240 or LL400 low-loss coax cable ABOVE. • Connects Antenna to Wallplate or direct to your modem/Patch Cable. Coax specs SMA-Male and FME-female Final Termination *When antenna is purchased with an Optional Coax • Selected Coax Cables are supplied with adapters to provide final terminations of both SMA Male and FME female via included adapter(s).Others available Coax Cable includes a strip of Self Amalgamating Tape to seal the outdoor antenna connection.Seal antenna connections against Rain, Moisture and UV sunlight.19 wide x 0.8mm thick.Sufficient tape to cover the outdoor SMA antenna connections in the kit.Phone/Modem Patch Cable not included – Please purchase separatelyMast shown in pictures is for illustration purposes only. Mast or pole not included2300 2400 2600 MHz CompatibleCarrier/ServiceFrequencyBandBandwidthCompatibleOptus 4G 2300 TDD2300MHzBand 402302~2400 MHzWireless Network WiFi WLAN 802.112400MHzWiFi 2.4GHz2400-2484 MHz4G 2600 FDD2600MHz Band 72500~2690 MHzBest Coax Cable for 4G LTEConsider using super-low-loss LMR400 coax for 4G LTELMR240 & LMR195 coax are very high quality coax cables. However there are no magical loss-free coax cables and as such are subject to attenuation that increases with increased frequency and longer length as any coax cable. As the upper 4G bands of 1710MHz – 2700MHz the attenuation per metre will be more than double that of the lower 700, 850 and 900MHz bands. Thus we always recommend LMR400 super-low-loss coax for runs more than 5m for frequencies over 1GHz in low signal areas.
