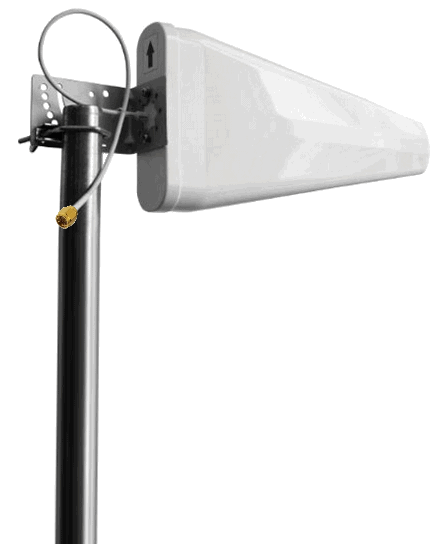

Description11dbi – 700-2700MHz LPDA Directional Antenna All Band – All Carriers 5G, 4GX, 4G, 3G, nextG & GSM 700/850/900/1800/2300/2600 inc 2.4GHz WiFi Mobile Broadband and Mobile PhoneConnectivityBenefits – Who uses these antennas.3G, 3G nextG & GSM USB Modems, Routers & Mobile Phones.All 4G 700,850,900,1800,2300 & 2600MHz bands including 4GX and 4G CA.Future proof, covers all services:Rural/Regional/Metro services using the band specified.For Fixed Wireless, Outdoor and Indoor installations.Greatly Improves Wireless Internet and Mobile Phone service in rural and marginal signal areas.Mines, Dongas and Geo-technical contractors.Locations in hills country where local 3G signal is weak.Farms and Stations and anyone just outside of the stated coverage area from the Mobile phone towers.Correctly installed, this antenna may turn an unreliable 3G internet connection into a fast broadband and quality VoIP service.Optional coax cable is supplied with FME-Female and SMA-Male (adaptor) final connection. Patch Lead (if required) not included sold separatelySPECIFICATIONS Electrical DataGain:10/11 dBiFrequency (MHz)698-960 / 1710-2700VSWR:<1.2:1Polarization:Vertical, HorizontalHorizontal Beamwidth:50°Vertical Beamwidth:40°Nominal Impedance:50 OhmsF/B Ratio:>18 dBMax Input Power:100 WLightning Protection:DC Ground Mechanical DataConnector:SMA Male on antennaDimensions (mm):445*265*65Weight:1.2kgPigtail Cable Length:300mmPigtail Coax:®LMR200 or equiv.Element Material:Aluminum AlloyRadome Material:Weatherproof ABSMounting Method:MastMast Diameter:Ø25-Ø54mmRated Wind Velocity:240km/hOperating Temp:-40~ 65°CType:Radome Log-Periodic (LPDA)Can be installed as a MiMo Antenna Kit Vodafone 4G Telstra 4GX and 4G Optus 4G MIMO Optus 4G-TDD-2300 MIMO Wireless-N MIMO.Also useful for 3G Antenna Diversity in low signal areas. 698-960/1710-2700MHz CompatibleCarrier/ServiceFrequencyBandBandwidthCompatibleTelstra 4Gx Optus 4G, *TPG 4G700MHzBand 28703~803 MHzTelstra 3G Vodafone 3G & 4G 850MHz Band 5809~894 MHzOptus 3G, *Telstra 4G Vodafone 3G *4G900MHzBand 8880~960 MHzTelstra & Optus 4G1800MHzBand 31710~1880 MHzVodafone, Optus, Telstra 3G and *4G2100MHzBand 11920~2170 MHzOptus 4G TDD (Vividwireless)2300MHzBand 402302~2400 MHz2.4GHz Wireless Networks WiFi WLAN 802.112400MHzWiFi 2.4GHz2400-2484 MHzTelstra 4G, Optus 4G *Vodafone/TPG 4G2600MHz Band 72500~2690 MHzNotes: *Minor or in-transition servicesCables & Connections The antennas have SMA male connector. The optional additional coax cable is supplied with adapter(s) LL240 and LL400 – SMA female both ends LL240 and LL400 SMA female on coax, SMA male FME female adapters includedLL195 FME female on cable, SMA male adapter included Antenna Coax Cable • Select your required length of LL195, LL240 or LL400 low-loss coax cable ABOVE. • Connects Antenna to Wallplate or direct to your modem/Patch Cable. Coax specs SMA-Male and FME-female Final Termination *When antenna is purchased with an Optional Coax • Selected Coax Cables are supplied with adapters to provide final terminations of both SMA Male and FME female via included adapter(s).Others available Coax Cable includes a strip of Self Amalgamating Tape to seal the outdoor antenna connection.Seal antenna connections against Rain, Moisture and UV sunlight.19 wide x 0.8mm thick.Sufficient tape to cover the outdoor SMA antenna connections in the kit.Phone/Modem Patch Cable not included – Please purchase separatelyMast shown in pictures is for illustration purposes only. Mast or pole not includedBest Coax Cable for 4G LTEConsider using super-low-loss LMR400 coax for 4G LTELMR240 & LMR195 coax are very high quality coax cables. However there are no magical loss-free coax cables and as such are subject to attenuation that increases with increased frequency and longer length as any coax cable. As the upper 4G bands of 1710MHz – 2700MHz the attenuation per metre will be more than double that of the lower 700, 850 and 900MHz bands. Thus we always recommend LMR400 super-low-loss coax for runs more than 5m for frequencies over 1GHz in low signal areas.
