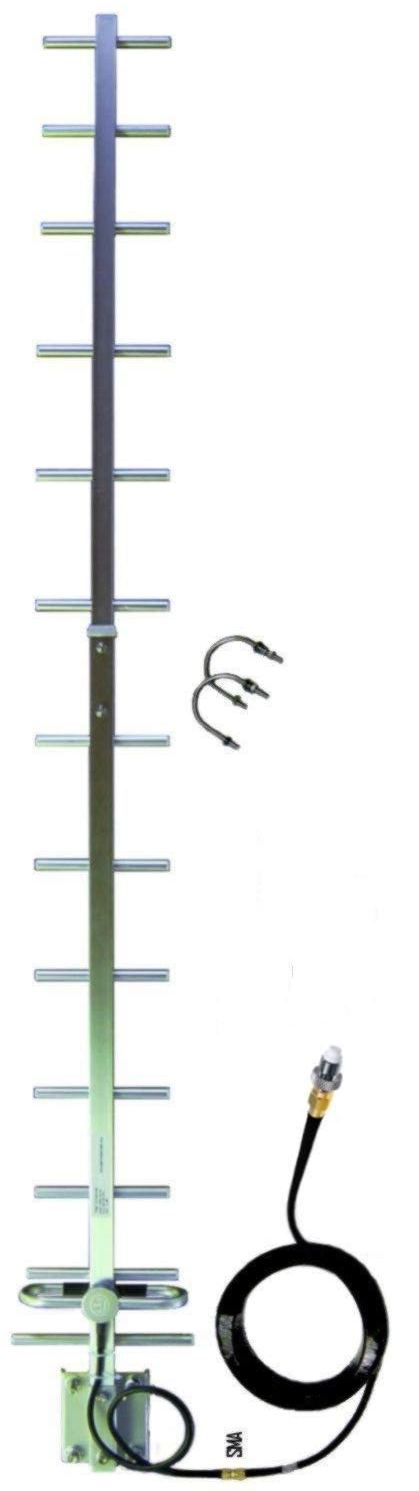

Description16dBi 850/900MHz Yagi Antenna (Directional) for Telstra 3G, Optus 3G, Vodafone 3G/4G Mobile Phone and Mobile Broadband InternetTo find your closest Cell Tower frequency click hereConnectivity Benefits – Who uses these antennas.3G USB Modems, Routers and 3G Mobile Phones.Rural/Regional services.3G 850MHz & 900MHz Mobile Phones and Mobile Broadband Access.4G 850MHz as used by Vodafone.GSM mobile phonesRemote, 3G IP Cameras surveillance and control.For Fixed Wireless, Outdoor and Semi-Mobile installs.RFID and 900MHz wireless linksGreatly Improves Wireless Internet and Mobile Phone service in rural and marginal signal areas.Mines, Dongas and Geo-technical contractors.Locations in hills country where local 3G signal is week due to terrain.Farms and Stations too far from Mobile phone towers.Correctly installed, this antenna may turn an unreliable 3G internet connection into a fast broadband and quality VoIP service.Supplied with FME-Female and SMA-Male (adapter) final connection. Patch Lead (if required) not included sold separatelyCables & Connections The antennas have SMA male connector. The optional additional coax cable is supplied with adapter(s) LL240 and LL400 – SMA female both ends LL240 and LL400 SMA female on coax, SMA male FME female adapters includedLL195 FME female on cable, SMA male adapter included Antenna Coax Cable • Select your required length of LL195, LL240 or LL400 low-loss coax cable. • Connects Antenna to Wallplate or direct to your modem/Patch Cable. Coax specs SMA-Male and FME-female Final Termination *When antenna is purchased with an Optional Coax • Selected Coax Cables are supplied with adapters to provide final terminations of both SMA Male and FME female via included adapter(s).Others available Coax Cable includes a strip of Self Amalgamating Tape to seal the outdoor antenna connection.Seal antenna connections against Rain, Moisture and UV sunlight.19 wide x 0.8mm thick.Sufficient tape to cover the outdoor SMA antenna connections in the kit. Phone/Modem Patch Cable not included – Please purchase separatelyMast shown in pictures is for illustration purposes only. Mast or pole not included 850 900 MHz CompatibleCarrier/ServiceBandModeBandwidthCompatible?Telstra/Bigpond nextG 850MHz3G WCDMA824~894 MHzVodafone 3G, 3G HSPA,DC-HSPA Vodafone 4G 8504GOptus, Virgin, Vodafone 3G (900MHz)900MHzUMTS/HSPA 900880~960 MHzTelstra 4G Advanced 900MHz900MHz4G LTE-A880~960 MHzTelstra Vodafone & Optus – 4G1800MHzLTE 1800 FD1710~1880 MHznoVodafone, Optus, Telstra GSM/3G – voice/sms/data2100MHzUMTS/HSPA1920~2170 MHzno *Services are being continuously updated – subject to change.Specifications Electrical Data 850MHz Band900MHz BandFrequency(MHz):824-890880-960Gain:15dBi16dBiVSWR: <1.5:1 <1.2:1Polarization:Vertical, Horizontal (±45° Slant with optional bracket)Horizontal Beamwidth:31° 30°Vertical Beamwidth:28° 27°Nominal Impedance:50 OhmsF/B Ratio:>18 dBLightning Protection:DC Ground Mechanical DataPigtail / Connector:300mm LMR240 / SMA- maleDimensions:1410 x 200 x 50 mmWeight:1.2kgPigtail Cable Length:300mmReflector Material:Aluminum AlloyAntenna Material:Aluminum AlloyMounting Method:MastMast Diameter:Ø40-Ø70mm U-Bolt ClampRated Wind Velocity:210km/hOperating temperature:-40~ 65°CType:Directional, Yagi-Uda
