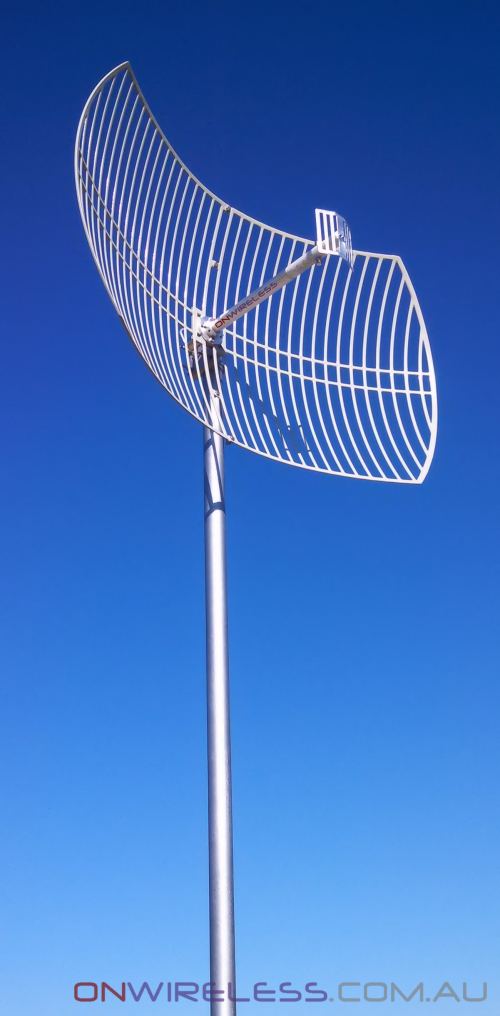

Description20dbi – Parabolic Grid Antenna for 4G-LTE 1800 MHz – Mobile BroadbandNOTE !! 4G LTE 1800MHz only – NOT suitable for 3G or nextG Connectivity Benefits – Who uses these antennas.USB 4G Routers, Modems and Mobile Phones.GSM services on 1800MHzFor Fixed Wireless, Outdoor and Semi-Mobile installs.Suitable for both 4G LTE-FDD 1800 as used by Vodafone Telstra and Optus.Homes, Offices, Mines, Dongas and Geo-technical contractors, but rural and metropolitan.Farms and Stations too far from Mobile phone towers.Correctly installed, this antenna may turn an unreliable 4G internet connection into a fast broadband and quality VoIP service.Greatly Improves 4G Wireless Internet and Mobile Phone service in rural and marginal signal areas.This antenna suits 4G LTE services on 1800MHz. At this frequency, like the 2100 GSM/3G band, much signal can be absorbed by rain, fog, and vegetation that is in the direct line from the tower to your location. Also, the signal path needs to be line-of-sight. This doesn’t mean you need to be able to see the cell tower, it just means there must be no significant buildings, hills or mountains blocking the direct path. To get the best LTE connectivity you’ll benefit form the greatly increased Signal Strength and Signal-to-Noise ratio these directional antennas will provide.When purchased with coax cable, final connection is SMA male FME female to suit all Patch cables and most modems Patch Lead (if required) is not included, sold separatelySupplied with FME-Female and SMA-Male (adapter) final connection. Patch Lead (if required) not included sold separatelyElectrical DataFrequency:1710-1880 MHzGain:20 dBiVSWR:<1.5:1Polarization:Vertical, Horizontal, ±45° SlantHorizontal Beamwidth:12°Vertical Beamwidth:18°Nominal Impedance:50 OhmsF/B Ratio:>30 dBMax Input Power:100 WLightning Protection:DC Ground Mechanical DataConnector:SMA MaleDimensions:1000 x 600 x 480 mmWeight:2.5kgCable Length:240mmReflector Material:Aluminum AlloyAntenna Material:Aluminum AlloyMounting Method:MastMast Diameter:Ø40-Ø70mmRated Wind Velocity:210km/hOperating temperature:-40~ 65°CType:Parabolic GridAlso available as a Dual Antenna Kit for Optus, Vodafone & Telstra 4G LTE 1800 MIMOCables & Connections The antennas have SMA male connector. The optional additional coax cable is supplied with adapter(s) LL240 and LL400 – SMA female both ends LL240 and LL400 SMA female on coax, SMA male FME female adapters includedLL195 FME female on cable, SMA male adapter included Antenna Coax Cable • Select your required length of LL195, LL240 or LL400 low-loss coax cable. • Connects Antenna to Wallplate or direct to your modem/Patch Cable. Coax specs SMA-Male and FME-female Final Termination *When antenna is purchased with an Optional Coax • Selected Coax Cables are supplied with adapters to provide final terminations of both SMA Male and FME female via included adapter(s).Others available Coax Cable includes a strip of Self Amalgamating Tape to seal the outdoor antenna connection.Seal antenna connections against Rain, Moisture and UV sunlight.19 wide x 0.8mm thick.Sufficient tape to cover the outdoor SMA antenna connections in the kit. Phone/Modem Patch Cable not included – Please purchase separatelyMast shown in pictures is for illustration purposes only. Mast or pole not included 1800 MHz CompatibleCarrier/ServiceBandModeBandwidthCompatible?Telstra/Bigpond nextG 850MHz3G WCDMA824~894 MHznoVodafone 3G, 3G HSPA, HSPA Optus, Virgin, Vodafone 3G (900MHz)900MHzUMTS/HSPA 900880~960 MHznoTelstra – 4G LTE – Advanced900 plus 1800MHz4G LTE-A Dual Band880~960 MHz 1710~1880 MHznoTelstra Vodafone & OPTUS – 4G LTE1800MHzLTE 1800 FD1710~1880 MHzVodafone, Optus, Telstra GSM/3G – voice/sms/data2100MHzUMTS/HSPA1920~2170 MHzno*Services are being continuously updated – subject to change.
