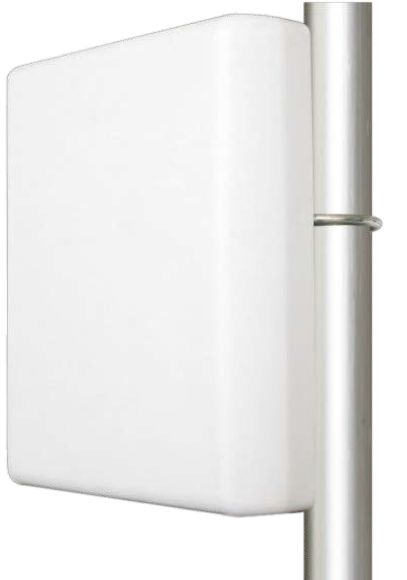

Description8dbi – Panel Antenna for 3G 4G and 2400MHz WiFi806-960/1710-2700MHz Covers 4G & 3G and 2.4GHz WiFi Bands DirectionalAlso perfect for use with the Cell-Fi-Go as the Coverage AntennaCovers all 4G, 3G, and 2.4GHz bands worldwideSuitable for locations where good signal is available outdoors but the signal to your indoor modem is poor.Future proof, covers all services all bands: 850/900-1800/1900/2100/2300/2400 & 2600MHzFixed Wireless, Outdoor or Semi-Mobile installs.Antenna has SMA-male fitting. Adapter to RPSMA required for use as a WiFi antenna.Can mount multiple antennas at to create a MiMo antenna system.Pole Mount BracketWall Mount BracketAntenna has SMA male connector , Kit is supplied with FME-Female and SMA-Male (adapters) final connection when ordered with a antenna coax cable option. Patch Lead (if required) not included sold separately SMA male connectorAntenna has SMA male connector , Kit is supplied with FME-Female and SMA-Male (adapters) final connection when ordered with a antenna coax cable option. RP-SMA required for WiFi, please advise at time of order if using for WiFi Patch Lead (if required) not included sold separatelyElectrical Data700MHz 850,900MHz1800, 1900, 2100, 2300 & 24002600Frequency (MHz):not suitable806-9601710-25002500-2700Gain (dBi):786VSWR:<1.5:1Polarization:Vertical or SlantHorizontal Beamwidth:90° ±15°75° ±12°75° ±12°Vertical Beamwidth:60°55°50°Nominal Impedance:50 OhmsF/B Ratio:>10 dBMax Input Power:100 WLightning Protection:DC GroundMechanical DataConnector:SMA maleDimensions:210*180*45 mmWeight:0.6kgCable Length:1.5mReflector Material:Aluminum AlloyAntenna Material:Weatherproof ABSMounting Method:Both Pole Mount and Wall Mount brackets includedMast Diameter:25 – 53 mmRated Wind Velocity:150 kphOperating temperature:-40~ 65°CRP-SMA required for WiFi, please advise at time of order.Type:Multi-band Panel698-960/1710-2700MHz CompatibleCarrier/ServiceFrequencyBandBandwidthCompatibleTelstra 4Gx Optus 4G, *TPG 4G700MHzBand 28703~803 MHzTelstra 3G Vodafone 3G & 4G 850MHz Band 5809~894 MHzOptus 3G, *Telstra 4G Vodafone 3G *4G900MHzBand 8880~960 MHzTelstra & Optus 4G1800MHzBand 31710~1880 MHzVodafone, Optus, Telstra 3G and *4G2100MHzBand 11920~2170 MHzOptus 4G TDD (Vividwireless)2300MHzBand 402302~2400 MHz2.4GHz Wireless Networks WiFi WLAN 802.112400MHzWiFi 2.4GHz2400-2484 MHzTelstra 4G, Optus 4G *Vodafone/TPG 4G2600MHz Band 72500~2690 MHzNotes: *Minor or in-transition servicesCables & Connections The antennas have SMA male connector. The optional additional coax cable is supplied with adapter(s) LL240 and LL400 – SMA female both ends LL240 and LL400 SMA female on coax, SMA male FME female adapters includedLL195 FME female on cable, SMA male adapter included Antenna Coax Cable • Select your required length of LL195, LL240 or LL400 low-loss coax cable. • Connects Antenna to Wallplate or direct to your modem/Patch Cable. Coax specs SMA-Male and FME-female Final Termination *When antenna is purchased with an Optional Coax • Selected Coax Cables are supplied with adapters to provide final terminations of both SMA Male and FME female via included adapter(s).Others available Coax Cable includes a strip of Self Amalgamating Tape to seal the outdoor antenna connection.Seal antenna connections against Rain, Moisture and UV sunlight.19 wide x 0.8mm thick.Sufficient tape to cover the outdoor SMA antenna connections in the kit. Phone/Modem Patch Cable not included – Please purchase separatelyMast shown in pictures is for illustration purposes only. Mast or pole not included
