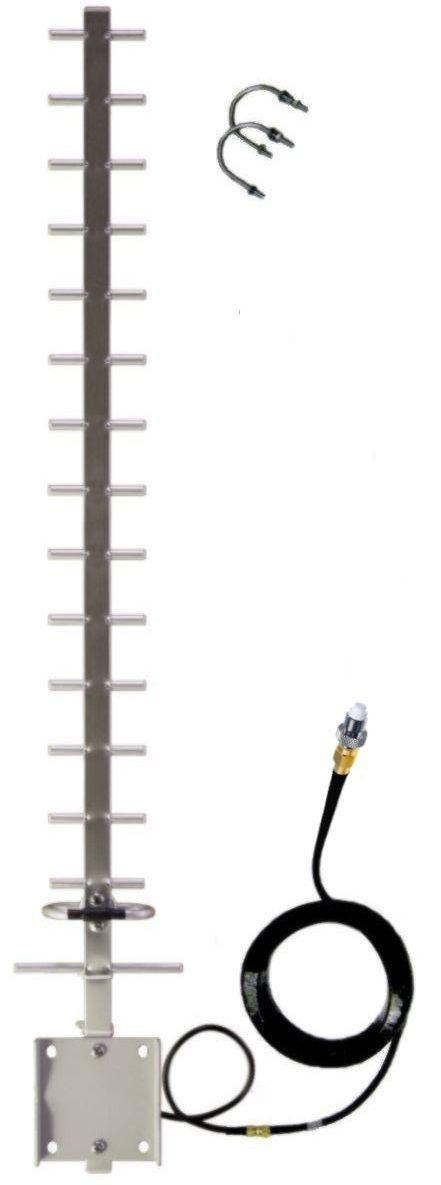

Description16dBi High Gain Yagi Antenna for 2100MHz 3G Wireless Broadband and 2100MHz 4G Internet ServicesTo find your closest Cell Tower frequency click hereConnectivity Benefits – Who uses these antennas.2100MHz compatible 3G/NextG Mobile Phones and Modems.Metro services using the 2100 band specified.GSM, 3G, WCDMA, UMTS, HSDPA, HSUPAFor Fixed Wireless, Outdoor and Indoor installations.Greatly Improves Wireless Internet and Mobile Phone service in Metro and some **Rural areas.Use in areas where the 2100MHz 3G/GSM or nextG service is available but the signal is low. Generally used in Suburban and Township locations.Correctly installed, this antenna may turn an unreliable 3G internet connection into a fast broadband and quality VoIP service.Supplied with FME-Female and SMA-Male (adapter) final connection. Patch Lead (if required) not included sold separately Electrical DataGain:16 dBiFrequency:1920-2170MHzVSWR:<1.5:1Polarization:Vertical (or horizontal)Horizontal Beamwidth:27ºVertical Beamwidth:23ºNominal Impedance:50 OhmsF/B Ratio:≥16 dBMax Input Power:100 WLightning Protection:DC Ground Mechanical DataConnector:SMA MaleDimensions:730mmWeight:0.5kgCable Length:480mmReflector Material:Aluminum AlloyMounting Method:MastMast Diameter:Ø40-Ø50mmRated Wind Velocity:210km/hOperating temperature:-40~ 65°CType:Yagi Note: This antenna specifically covers the 2100 MHz band ONLY. Please ensure that the 3G or NextG services available to you are using this frequency. For help please use our free guide. Cables & Connections The antennas have SMA male connector. The optional additional coax cable is supplied with adapter(s) LL240 and LL400 – SMA female both ends LL240 and LL400 SMA female on coax, SMA male FME female adapters includedLL195 FME female on cable, SMA male adapter included Antenna Coax Cable • Select your required length of LL195, LL240 or LL400 low-loss coax cable. • Connects Antenna to Wallplate or direct to your modem/Patch Cable. Coax specs SMA-Male and FME-female Final Termination *When antenna is purchased with an Optional Coax • Selected Coax Cables are supplied with adapters to provide final terminations of both SMA Male and FME female via included adapter(s).Others available Coax Cable includes a strip of Self Amalgamating Tape to seal the outdoor antenna connection.Seal antenna connections against Rain, Moisture and UV sunlight.19 wide x 0.8mm thick.Sufficient tape to cover the outdoor SMA antenna connections in the kit. Phone/Modem Patch Cable not included – Please purchase separatelyMast shown in pictures is for illustration purposes only. Mast or pole not included 2100MHz CompatibleCarrier/ServiceBandModeBandwidthCompatible?Telstra/Bigpond nextG 850MHz3G WCDMA824~894 MHznoVodafone 3G, 3G UMTS/HSPA, HSPA Optus, Virgin, Vodafone 3G (900MHz)900MHzUMTS/HSPA 900880~960 MHznoTelstra Vodafone & Optus – 4G LTE1800MHzLTE 1800 FD1710~1880 MHznoVodafone, Optus, Telstra GSM/3G – voice/sms/data2100MHzUMTS/HSPA1920~2170 MHz*Services are being continuously updated – subject to change.
