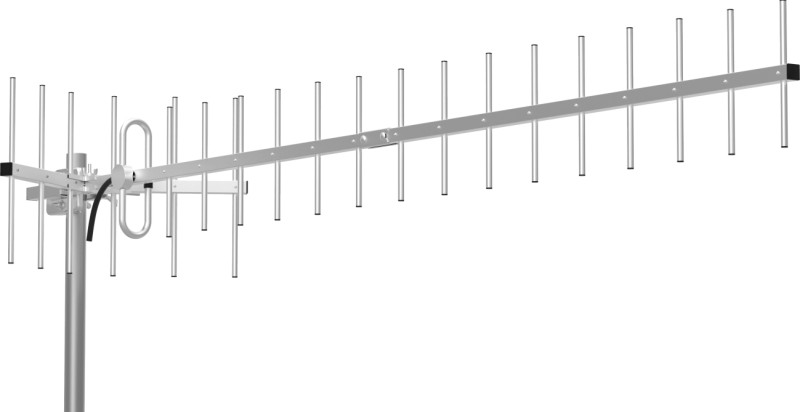

Description17dbi B28 (700MHz) B5 (850MHz) Directional Yagi Antenna for Telstra and Optus 4G & Vodafone 4G and 3G Mobile Phone and Wireless Broadband InternetConnectivityPurpose – Who uses these antennas.Suitable for low band MBB services of Telstra and Optus 4G on Band 28 (700MHz) and Vodafone 3G and 4G using Band 5 (850MHz) .For use in marginal/rural areas where there is either not line-of-sight and/or a long distance the mobile phone tower.Some assembly needed, comes as 3-piece: – 2-piece boom (see diagrams below) – Corner reflector.Greatly Improves Mobile Broadband Internet and Mobile Phone service in rural and marginal areas.Mines, Dongas and Geo-technical contractors.Locations in hills country where local MBB signal is week due to terrain and/or heavy vegetation.Farms and Stations too far from Mobile phone towers. SMA-Male Pigtail attached to antenna. Patch Lead (if required) not included sold separatelyVertical Polarisation Slant Polarisation, 2x antennas mounted as X-pol required for 2×2 MiMo Electrical DataFrequency:700-890 MHzGain:17dBi ±1dBiVSWR:<2:1iPolarization:Vertical or Horizontal Slant (with additional bracket)Horizontal Beamwidth:25°±5° (vertical mount)Vertical Beamwidth:20°±5° (vertical mount)Nominal Impedance:50 OhmsF/B Ratio:>25 dBLightning Protection:DC Ground Mechanical DataAntenna Connector:SMA MaleCable:300mm LMR200Installed Dimension (mm):1600 x 252 x 382 Packed as 2-piece, assembly requiredWeight:1.5kgReflector Material:Aluminum AlloyBoom Material:Aluminum, Steel Mounting Plate, Vertical Slant pole mountedMast/Pole Diameter:Ø30-Ø53mmRated Wind Velocity:100km/hOperating temperature:-40~ 65°CElements:17*Actual product differs in appearance, above image is for illustration purposes only*Two antennas required to create X-Pol MiMo system.*Actual product differs in appearance, above image is for illustration purposes only 700 and 850MHz CompatibilityCarrier/ServiceFrequencyBandBandwidthCompatibleTelstra 4Gx Optus 4G, *TPG 4G700MHzBand 28703~803 MHzTelstra 3G Vodafone 3G & 4G 850MHz Band 5809~894 MHz
